Description

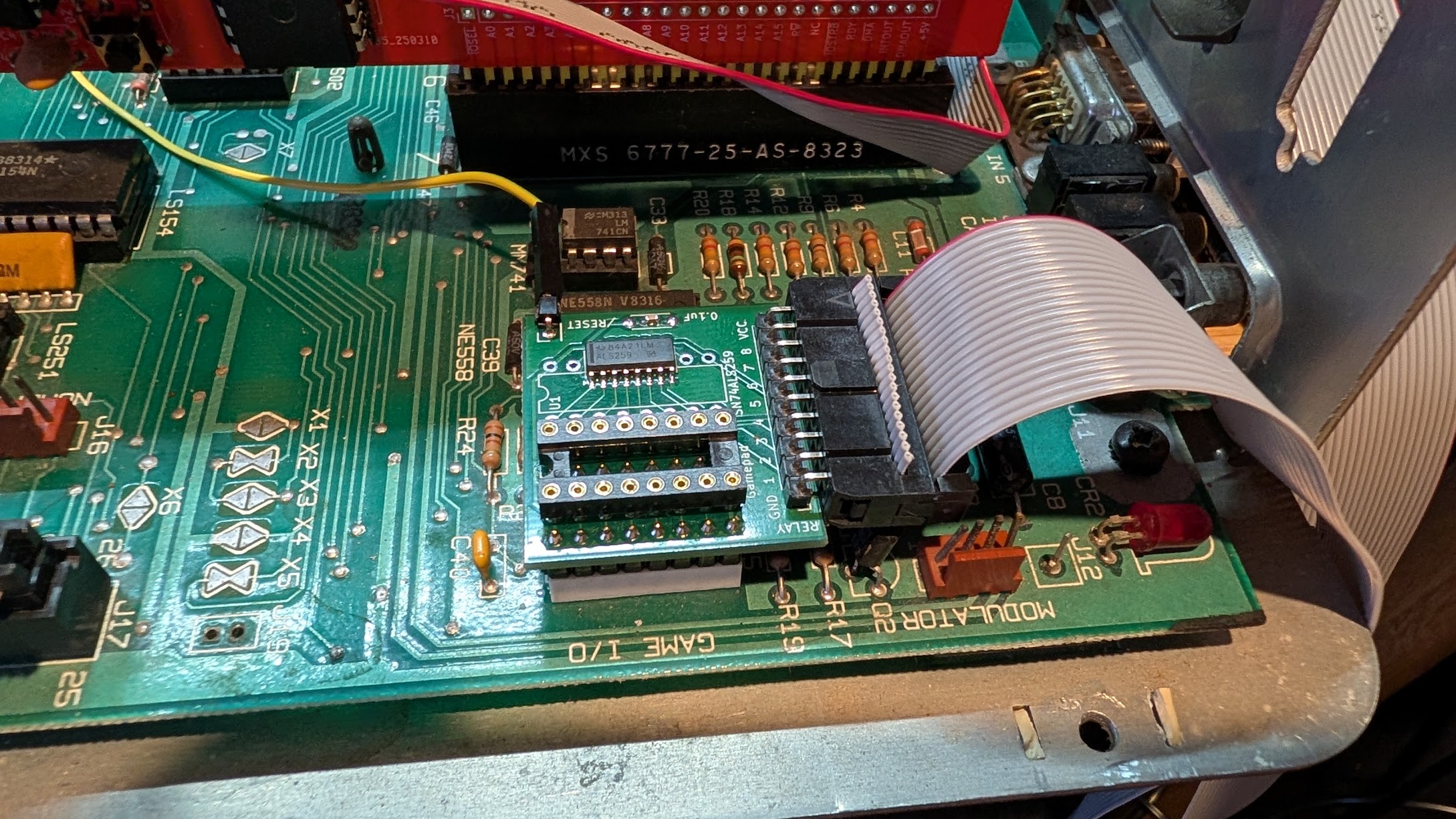

This is a PCB that plugs into the GAME I/O port of an Apple IIe computer. It provides signaling to the 8 channel relay board that is widely available for the Raspberry Pi line of SBCs.
It has socket on top so that you can still use game pads when it is installed.

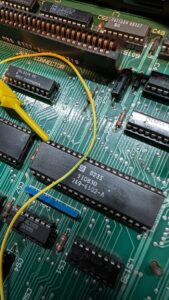

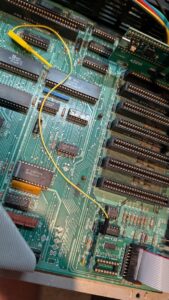

This Fully Assembled PCB comes with a 20 pin ribbon cable, and a Jumper Pin Grabber so that you can connect the reset to PIN 40 of the 6502. (See pictures below)
We are close to finishing our Whackadoodle! Game Port to the Apple IIe, and with this you will be able to use the Honkin’ Heckin’ Buttons ™ if you so desire.

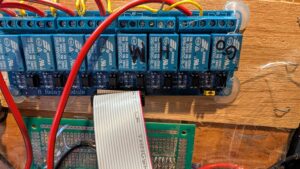

This board will work with the 8 channel relay boards and can be incorporated into your own software projects. More info to come about how to program these.
